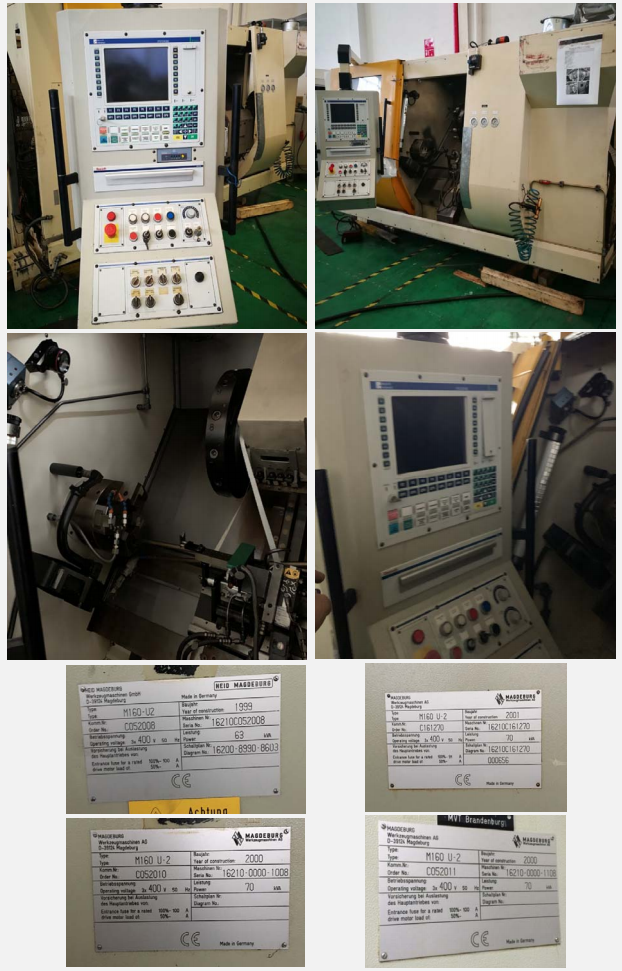

| 制造厂商 / Manufacturer:
|
马格德堡（MAGDEBURG）
|
| 机床型号 / Machine model:
|
M160-U2
|
| 出厂日期 / Year of produce:
|
1999, 2001, 2000, 2000
|
| 机床编号 / Serial No.:
|
16210C052008, 16210C161270, 162100001008, 162100001108
|
| 数控系统 / CNC control system:
|
Indramat MTC 200
|
|
最大车削直径 / Max. turning diameter:
|
390 mm
|
| 最大车削长度 / Max. turning length:
|
800 mm
|
|
床身上最大回转高度 / Max.
swing over bed
|
500 mm
|
| X轴行程 / X axis travel:
|
275 mm
|
| Z轴行程 / Z axis travel:
|
870 mm
|
| X轴进给速度 / X feed rate:
|
20 m/min
|
| Z轴进给速度 / Z feed rate:
|
30 m/min
|
| 主轴转速 / Spindle speed:
|
10~5000 rpm
|
| 主轴功率 / Spindle power:
|
41.9 kW
|
| 主轴扭矩 / Spindle torque:
|
200 Nm
|
|
刀库容量 /
Capacity of tool magazine:
|
12 pos
|
|
尾座滑枕直径 / Tailstock quill diameter:
|
110 mm
|
|
尾座滑枕行程 / Tailstock quill travel:
|
120 mm
|
| 尾座顶尖锥度 / Tailstock taper:
|
MK4
|
| 总连接负载 / Total connecting power:
|
48 kVA
|
|
机床毛重 / Machine gross weight:
|
8300 kg
|
| 机床外形尺寸 / Machine dimensions:
|
5400 x 5000 x 2700 mm
|
|
装置和附件 / Equipments &
Accessories:
|
Indramat数控系统 / Indramat CNC control
|
|
UTS40快速刀柄 / UTS40
fast tool holder
|
|
C轴 / C axis
|
|
数控尾座和中心架 /
Controlled tailstock and steady rest
|
|
集成液压站 / Integrated hydraulic station
|
|
线缆、管路、支架和护罩 / Cables, pipes,
stands and covers
|
|
技术资料 / Technical documents
|
